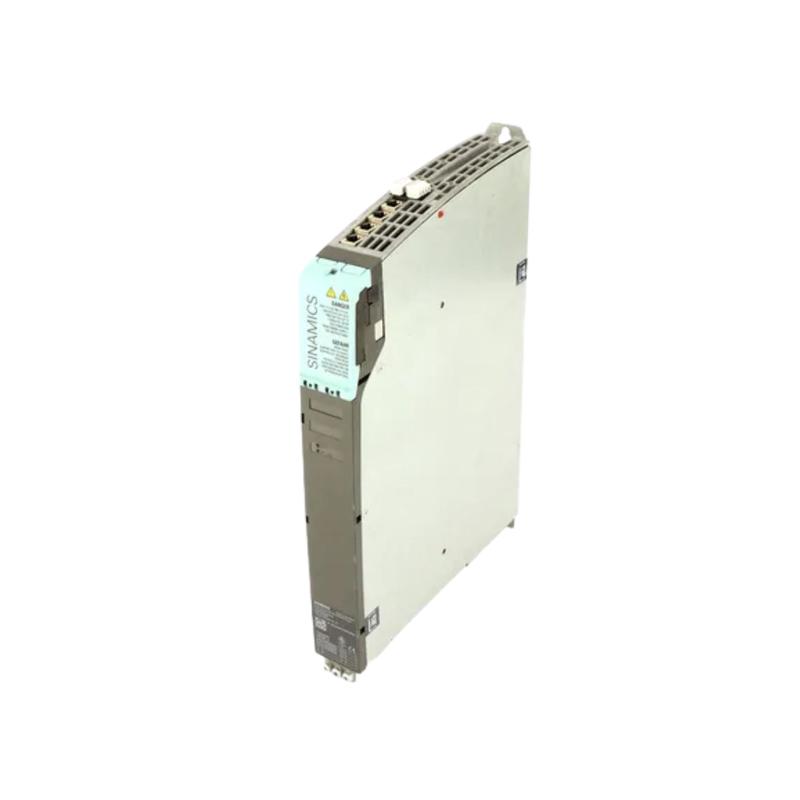

Siemens 6SL3120-1TE21-8AC0 | SINAMICS S120 Single Motor Module

Overview:

The Siemens 6SL3120-1TE21-8AC0 is a SINAMICS S120 Single Motor Module engineered for precise and efficient control of three-phase AC motors in industrial applications. This module operates with a 600 V DC input and delivers a 400 V 3 AC output at 18 A. Its booksize C-type construction with internal air cooling ensures a compact footprint, making it suitable for space-constrained installations. The module also features optimized pulse patterns and supports extended Safety Integrated functions, enhancing operational safety and performance.

Key Features:

• High-Performance Output: Delivers a 400 V 3-phase AC output at 18 A, suitable for various motor control applications.
• Compact Booksize C-Type Design: The space-saving construction allows for efficient integration into control cabinets.
• Internal Air Cooling: Ensures effective thermal management without the need for external cooling systems.
• Enhanced Safety Functions: Supports extended Safety Integrated features, promoting safe operation in industrial environments.
• DRIVE-CLiQ Interface: Includes a DRIVE-CLiQ cable for seamless communication within the SINAMICS drive system.

Technical Specifications:

• Product Type: SINAMICS S120 Single Motor Module
• Part Number: 6SL3120-1TE21-8AC0
• Input Voltage: 600 V DC
• Output Voltage: 400 V 3 AC
• Output Current: 18 A
• Construction Type: Booksize C-Type
• Cooling Method: Internal Air Cooling
• Safety Features: Extended Safety Integrated functions
• Communication Interface: DRIVE-CLiQ
• Dimensions: Standard booksize dimensions compatible with SINAMICS S120 systems
• Weight: Approximately 4.6 kg

Applications:

• Industrial Automation: Provides precise motor control for machinery and production lines.
• Material Handling: Ensures efficient operation of conveyors, hoists, and cranes.
• Process Control: Offers reliable performance in complex process automation systems.
• Packaging Equipment: Delivers accurate control for packaging machinery, enhancing productivity.

The Siemens 6SL3120-1TE21-8AC0 SINAMICS S120 Single Motor Module is a versatile and high-performance solution, ensuring efficient and reliable motor control in various industrial automation systems.
