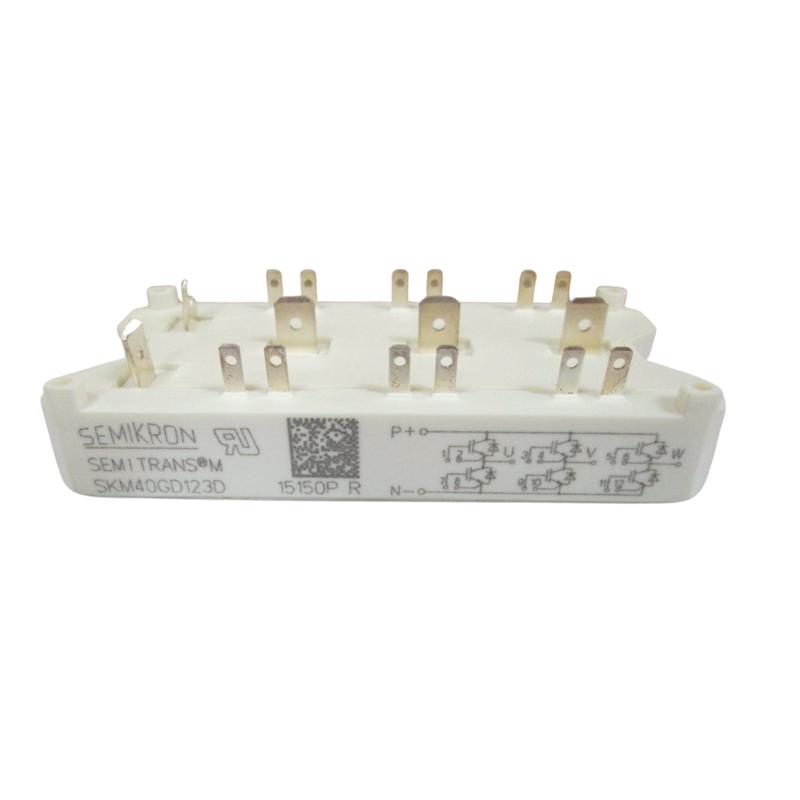

Semikron SKM40GD123D

Overview

The Semikron SKM40GD123D is a single IGBT module rated at 40A and 1200V, designed for reliable and efficient power switching. Housed in a compact SEMITRANS 1 package, it features integrated diode and trench-field stop technology, making it ideal for applications with tight space and thermal constraints.

Key Features

• Collector-Emitter Voltage: 1200V

• Continuous Collector Current: 40A

• Low VCE(sat) for reduced conduction losses

• Built-in freewheeling diode

• Electrically isolated baseplate

• Compact SEMITRANS 1 package

• High switching speed and efficiency

• Screw terminal mounting

Technical Specifications

• Part Number: SKM40GD123D

• VCE: 1200V

• IC: 40A

• VCE(sat) (typical): ~2.0V

• Isolation Voltage: 2500V AC

• Mounting Type: Chassis

• Package: SEMITRANS 1

• Operating Temperature: 40C to +150C

• Integrated Diode: Yes

• Cooling: Conduction through baseplate

Applications

• Inverter systems

• Motor drives

• Industrial automation

• Power supplies

• UPS and energy storage systems

Why Choose the SKM40GD123D

• Compact and easy to install

• Reliable performance in mid-power systems

• Efficient thermal management

• Trusted quality from Semikron

Order Now

The Semikron SKM40GD123D IGBT module is available and ships worldwide.
