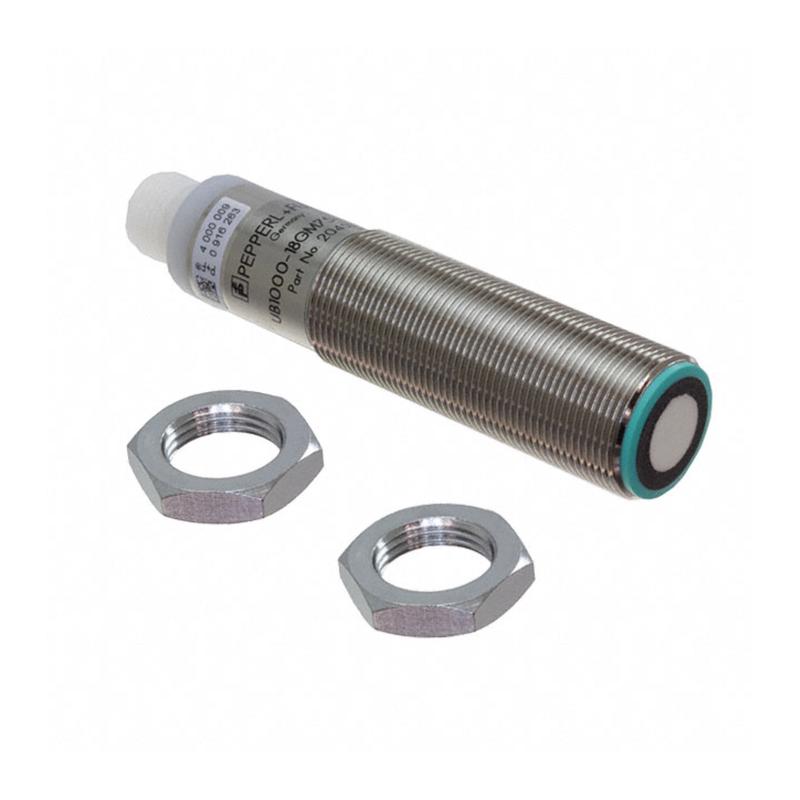

Pepperl+Fuchs UB1000-18GM75-E5-V15 High-Performance Ultrasonic Sensor

Overview

The UB1000-18GM75-E5-V15 from Pepperl+Fuchs is a rugged ultrasonic sensor engineered for non-contact distance measurement up to 1000mm. Ideal for harsh industrial environments, it provides reliable performance on challenging surfaces like transparent films, shiny metals, or dark objects.

Key Features

• Measuring Range: 70 mm to 1000 mm

• Output Type: PNP, NO/NC programmable

• Connection Type: 5-pin M12 connector

• Response Time: ~125 ms

• Switching Frequency: 3 Hz

• Enclosure: Nickel-plated brass housing

• Protection Rating: IP67

• Mounting Style: M18 threaded barrel

• LED Indicators: Yellow for switching state, Red for error or teach-in status

• Adjustable Sound Beam: Narrow or wide beam via software configuration

• Synchronization and Deactivation Functions

Technical Specifications

• Supply Voltage: 10 to 30 V DC

• No-load Current: 50 mA

• Operating Temperature: -25C to +70C

• Transducer Frequency: ~255 kHz

• Short-Circuit and Reverse Polarity Protection: Yes

• Material: Housing made of nickel-plated brass, transducer surface made of epoxy resin

Applications

• Level Monitoring: Accurate fill detection in tanks and containers

• Packaging Industry: Detect transparent films and irregular shapes

• Automated Warehousing: Object detection on conveyor belts

• Material Handling: Distance sensing for robotic systems and pick-and-place operations

Why Choose the UB1000-18GM75-E5-V15?

• Non-contact detection unaffected by material color or texture

• High reliability in dusty, wet, or reflective environments

• Easy setup with teach-in function and clear LED indicators

• Industry-standard M12 connectivity for easy integration

Order Now

Optimize your automation system with the UB1000-18GM75-E5-V15. Fast delivery and expert support available.
