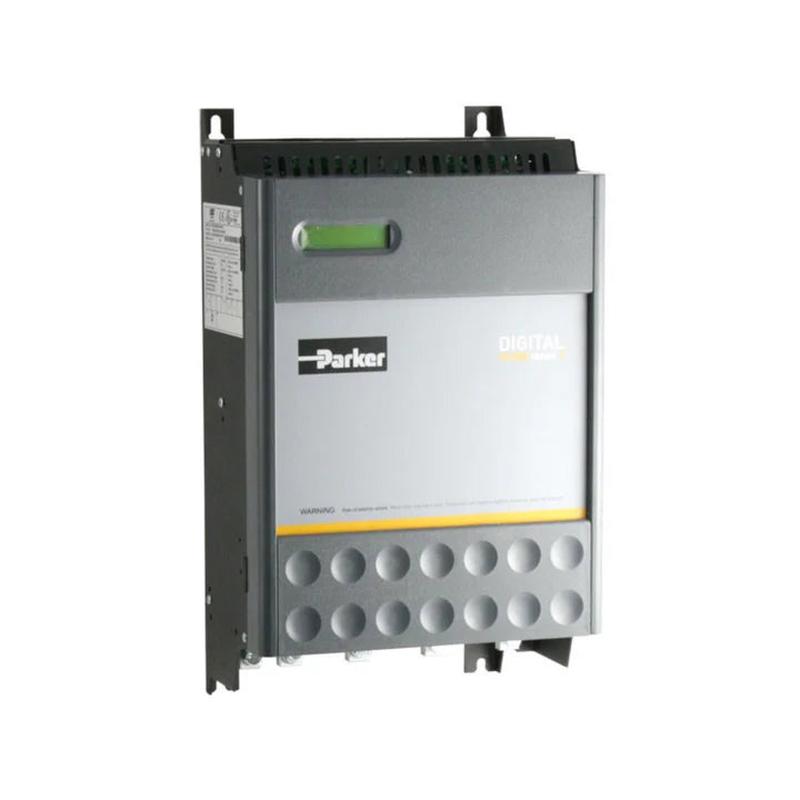

Parker 591C/1100/6/3/0/1/0/00 Overview

The Parker 591C/1100/6/3/0/1/0/00, also referenced as 591C-1100-6-3-0-1-0-00-000, belongs to the SSD 591C series of two-quadrant DC drives. Rated at 110 A, it is designed for 400 V three-phase AC input with a 220 V auxiliary control supply. Supporting motor outputs up to 45 kW (61 HP at 460 V DC), this unit offers precise motor speed and torque control for industrial applications. It features digital setup, isolated control, and robust design for reliable performance in demanding environments.

Key Features

• Two-quadrant DC drive (motoring and braking)

• Rated 110 A for high-power DC motor applications

• Motor output up to 45 kW (61 HP at 460 V DC)

• Fully digital and isolated control configuration

• Tachogenerator or AVF feedback compatibility

• Robust panel-mount design

• Equivalent to Eurotherm 591C models

Technical Specifications

• Full Part Numbers: 591C/1100/6/3/0/1/0/00 and 591C-1100-6-3-0-1-0-00-000

• Input Voltage: 220500 V AC, 3-phase 10%, 50/60 Hz

• Input Current: 88 A armature + up to 10 A field

• Auxiliary Control Voltage: 220 V

• Typical Motor Output: up to 45 kW (61 HP at 460 V DC)

• Dimensions: 250 mm W 180 mm D 445 mm H

• Heat Loss at Max Output: 330 W

• Ambient Rating: 40 C

• Mounting: Panel-mount with M6 fixings (400 200 mm centers)

• Ventilation: 100 mm clearance top, 100 mm bottom, 0 mm sides

• Terminals Include:
  5 analog inputs (4 configurable)
  3 analog outputs (2 configurable)
  Tachogenerator input or AVF feedback
  10 digital inputs (5 configurable, 2 encoder capable)
  3 digital outputs (all configurable)
  10 V reference for potentiometers

• Protection: IP00

Applications

• High-power DC motor speed and torque control

• Industrial automation, conveyors, and winding systems

• Hoists, lifting equipment, and heavy-duty machinery

• Replacement and retrofit of Eurotherm SSD 591C drives

Why Choose Parker 591C/1100/6/3/0/1/0/00

• Heavy-duty two-quadrant operation

• Reliable and flexible integration with industrial systems

• Fully digital, isolated setup with wide feedback support

• Designed for continuous use in demanding environments

Order Now

The Parker 591C/1100/6/3/0/1/0/00 (591C-1100-6-3-0-1-0-00-000) is in stock and ships worldwide.
