NEC NL6448BC33-64D

Overview

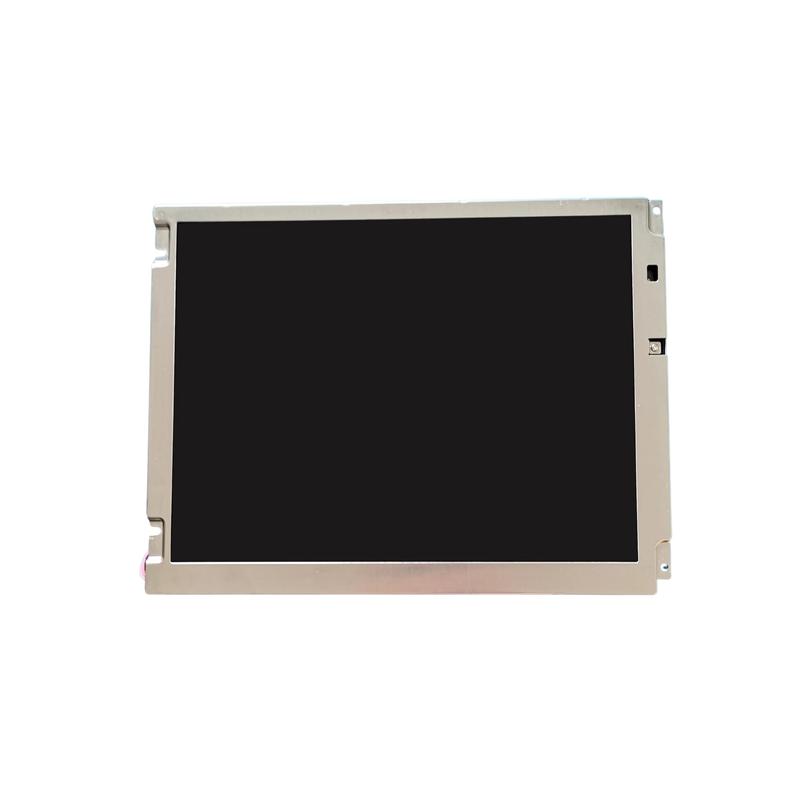

The NEC NL6448BC33-64D is a 10.4-inch TFT LCD module designed for industrial-grade equipment requiring stable visual performance and long-term reliability. With VGA resolution and LED backlight, it delivers excellent brightness, contrast, and energy efficiency for continuous operation.

Key Features

• 10.4-inch TFT LCD panel

• 640480 (VGA) resolution

• LED backlight for high brightness and long lifespan

• Wide viewing angles and color stability

• Compact and robust design for industrial integration

• Low power consumption and high reliability

Technical Specifications

• NEC Code: NL6448BC33-64D

• Display Size: 10.4 inches

• Resolution: 640480 (VGA)

• Display Type: TFT LCD

• Backlight: LED

• Brightness: 450 cd/m (typical)

• Contrast Ratio: 600:1 (typical)

• Viewing Angle: 160 horizontal / 140 vertical

• Interface: LVDS

• Operating Temperature: 20 C to +70 C

• Storage Temperature: 30 C to +80 C

Applications

• Industrial control systems

• Human-Machine Interfaces (HMIs)

• Medical and diagnostic equipment

• Transportation and navigation systems

• Test and measurement instruments

Why Choose NEC NL6448BC33-64D?

• Reliable display performance under harsh conditions

• Energy-efficient LED backlight with extended service life

• Stable image quality and color consistency

• Proven NEC durability for industrial applications

Order Now

Upgrade your industrial systems with the NEC NL6448BC33-64D, a 10.4-inch LED-backlit TFT LCD designed for clarity, efficiency, and dependable performance.
