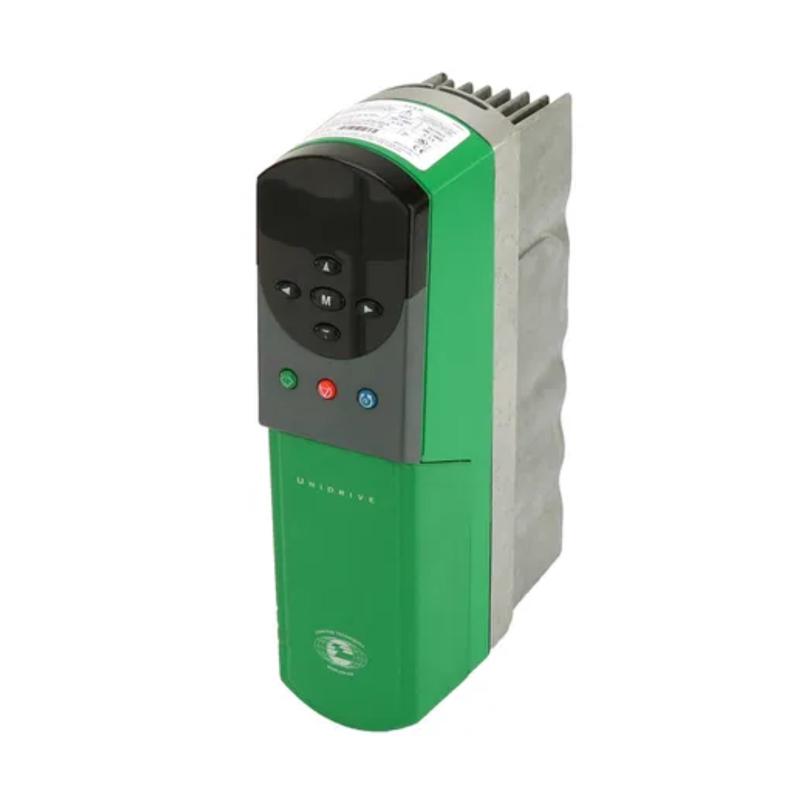

Control Techniques UNI1405

Overview

The UNI1405 from Control Techniques is a compact and high-performance AC drive designed for 4kW motor control applications. It delivers a 9.5A output current from a 3phase 380480V supply and supports various control modes including V/f and open-loop vector. Engineered for versatility, this Unidrive model ensures reliable operation across many industrial and OEM systems.

Key Features

• Power Rating: 4kW

• Input Voltage: 380480V AC 10%, 3phase

• Input Current: 10A

• Output Current: 9.5A

• Frequency: 50/60Hz

• Control Modes:

  • V/f control

  • Open-loop vector

  • Servo (with options)

  • Regenerative (optional)

• Enclosure: IP20, compact size

• Diagnostics: Built-in fault monitoring and trip log

• Expandability: Slots for communication and feedback modules

Technical Specifications

• Model: UNI1405

• Output Frequency: 0400Hz

• Operating Temp: 0C to +40C (derating above)

• Mounting: Panel or DIN-rail

• Cooling: Integrated fan

• Chassis: Space-efficient design

Applications

• Small conveyor systems

• Fans and blowers

• Light-duty pumps

• General industrial motor control

• Automation systems requiring compact drives

Why Choose the UNI1405

• Delivers consistent performance in compact form

• Supports a wide range of motor types

• Ideal for space-constrained electrical panels

• Trusted by OEMs and industrial users worldwide

• Part of the robust Control Techniques Unidrive platform

Order Now

The Control Techniques UNI1405 AC Drive is available and ships worldwide.
