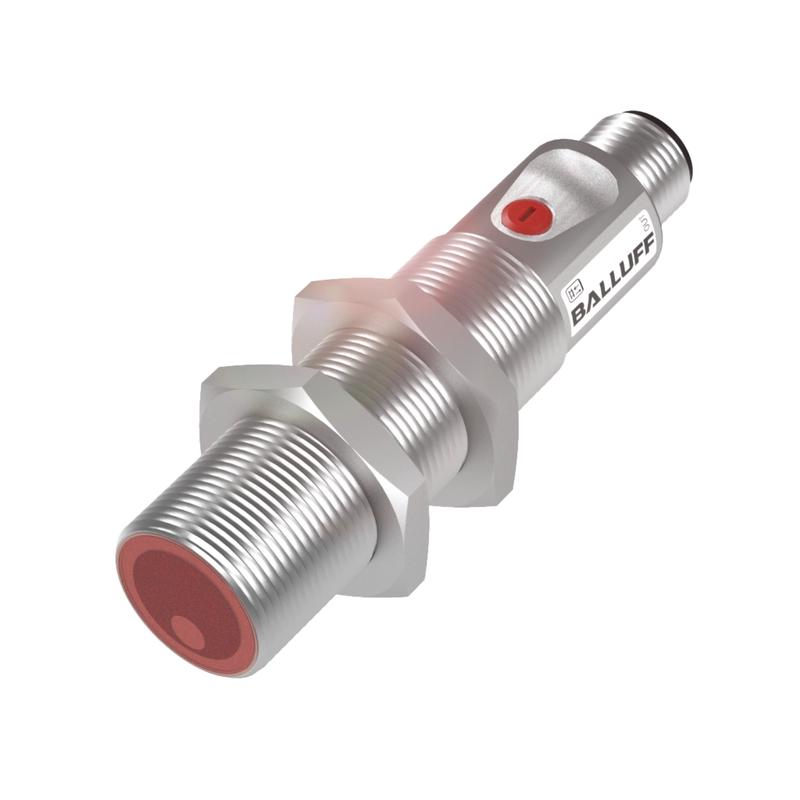

Balluff BOS01NE

Balluff Code: BOS 18M-PA-LR20-S4

Overview

The Balluff BOS01NE is a mid-range diffuse photoelectric sensor designed for dependable object detection up to 150mm. With a PNP normally open output and robust IP67 housing, it\’s optimized for packaging, handling, and automation systems where reliable sensing and compact size are essential.

Key Features

• Diffuse sensing mode with up to 150mm detection distance

• PNP normally open (NO) switching output

• Built-in red LED emitter for quick alignment

• Fast response time (<1ms) ideal for dynamic processes

• Compact rectangular housing, M12 4-pin connector

• Robust IP67 protection against dust, water, and industrial contaminants

Technical Specifications

• Sensing Distance: Up to 150mm

• Output Type: PNP NO

• Light Source: Red LED

• Response Time: 1ms

• Connection: M12, 4-pin connector

• Housing Material: Durable plastic

• Protection Rating: IP67

• Supply Voltage: 1030V DC

• Operating Temperature: 25C to +55C

Applications

• Medium-distance detection on conveyor lines

• Bottle or container presence in filling systems

• Packaging and logistics automation

• Material handling in compact or mobile cells

• Object detection in small to mid-sized spaces

Why Choose Balluff BOS01NE?

• Balanced sensing range for mid-range tasks

• Durable industrial design suited for varied environments

• Fast and precise output for responsive automation

• Compact size and M12 connector ensure easy installation

• Trusted Balluff automation performance
