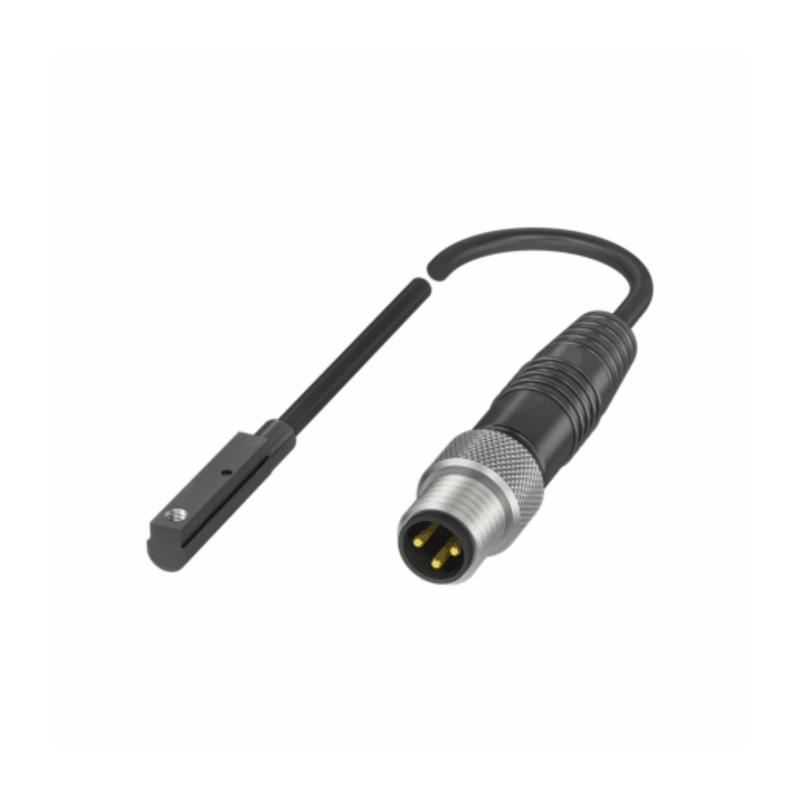

Balluff BMF00A2

Balluff Code: BMF 214K-PS-C-2A-SA2-S49-00,3

Overview

The Balluff BMF00A2 is a compact magnetic field sensor designed for seamless integration into C-slot groove pneumatic cylinders. With a PNP normally open output, it automatically detects piston positions without contact, offering reliable and maintenance-free performance in tight automation systems.

Key Features

• Designed for Cslot pneumatic cylinder installation

• PNP normally open (NO) switching output

• Non-contact magnetic sensing of piston position

• LED status indicator for visual diagnostics

• Shortcircuit and overload protection

• IP67-rated housing for industrial environments

• Compact form factor for limited-space applications

Technical Specifications

• Supply Voltage: 1030V DC

• Output Type: PNP NO

• Switching Frequency: 1kHz

• Connection: 2m PUR cable

• Housing Material: Industrial-grade plastic

• Protection Rating: IP67

• Operating Temperature: 25C to +70C

• Mounting Style: Snap-in Cslot installation (flush mount)

Applications

• Detecting piston position within pneumatic cylinders

• Feedback sensing in compact actuator systems

• Pneumatic automation for packaging, handling, or robotics

• Field sensors for OEM and machinery equipment

Why Choose Balluff BMF00A2?

• Optimized for tight cylinder installation with Cslot fit

• No-wear magnetic detection ensures long service life

• LED indicator simplifies setup and diagnostics

• Compact, rugged design withstands industrial environments

• High reliability thanks to Balluff engineering and sensor expertise

Enhance your pneumatic automation accuracy with the Balluff BMF00A2a compact and powerful sensor for precise piston position monitoring.
