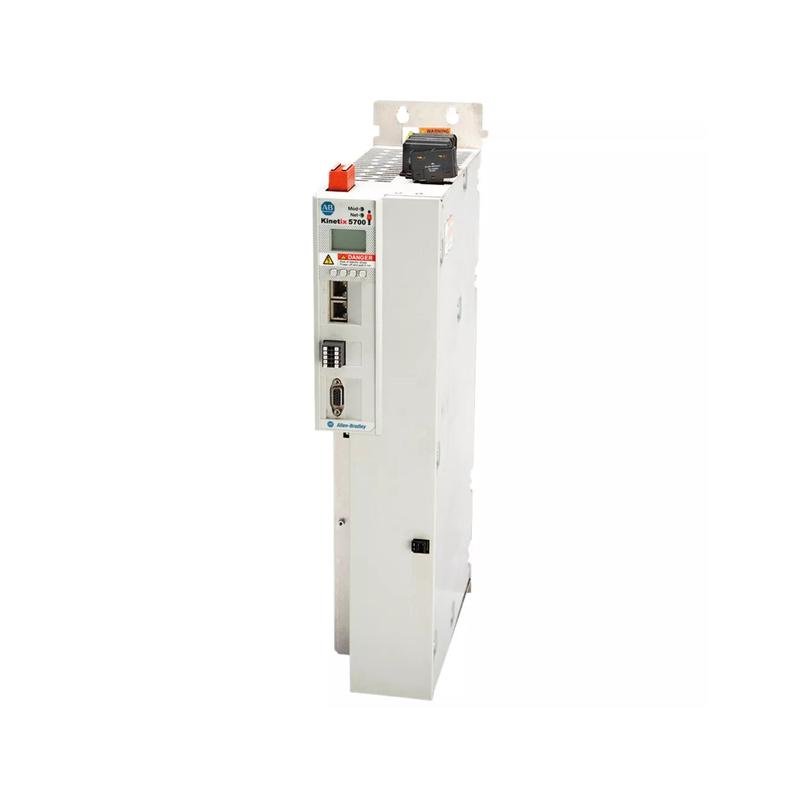

Allen-Bradley 2198-D020-ERS3 | Kinetix 5700 Dual-Axis Servo Drive, 2 x 8A, 5.4 kW

Overview

The Allen-Bradley 2198-D020-ERS3 is a Kinetix 5700 dual-axis servo drive module, designed for high-performance motion control in industrial automation applications. This model supports two independent axes, each delivering 8A continuous output current with 5.4 kW power, making it ideal for demanding motion applications such as robotics, CNC machining, material handling, and automated production lines.

The compact 55mm width allows for space-saving installation, while EtherNet/IP connectivity ensures seamless integration with Rockwell Automation systems. This drive supports positioning, velocity, and torque control, optimizing efficiency and enhancing machine performance.

Key Features

• Dual-Axis Servo Drive Module Controls two independent servo axes
• 2 x 8A Continuous Output Supports high-performance motion control
• 5.4 kW Power Output Per Axis Enables efficient energy usage
• Compact 55mm Module Width Saves valuable panel space
• EtherNet/IP Communication Supports seamless industrial networking
• Advanced Motion Control Provides precise positioning, velocity, and torque regulation
• Optimized for Kinetix Servo Motors Ensures seamless integration and performance

Technical Specifications

• Model: 2198-D020-ERS3
• Series: Kinetix 5700
• Number of Axes: Dual-Axis
• Continuous Output Current: 2 x 8A
• Power Output: 2 x 5.4 kW
• Module Width: 55mm
• Communication Protocol: EtherNet/IP
• Control Modes: Positioning, Velocity, and Torque Control
• Mounting: Panel Mount
• Operating Temperature: 0C to 50C (32F to 122F)

Applications

• Multi-Axis Motion Control Systems Supports dual-axis automation requirements
• CNC Machinery & Precision Machining Enables high-speed and accurate motion control
• Robotics & Automated Assembly Lines Enhances precision and production efficiency
• Material Handling & Conveyor Systems Ensures smooth and reliable operation
• General Industrial Automation Adaptable for various high-performance control applications

Why Choose the Allen-Bradley 2198-D020-ERS3?

• Dual-Axis Capability Controls two independent servo axes for optimized motion
• Compact & Space-Efficient Design 55mm width minimizes panel space usage
• EtherNet/IP Connectivity Ensures seamless system communication
• Advanced Motion Control Optimizes machine performance and reliability

Order Now

Fast shipping and worldwide delivery available.

Explore our full selection ofAllen-Bradley Kinetix 5700 Servo Drivesfor a complete range of models and specifications.
